Autogreasers Increase Returns On Your Equipment Investment
Bearing failure resulting from improper greasing is a major cause of equipment downtime and significant unnecessary maintenance costs to major construction, road building, aggregate, forestry and mining companies. The majority of failures are caused by: contamination of bushings by dust, dirt and moisture; inadequate amounts of grease applied to bearings; or over-greasing of key pivot points.
Direct costs resulting from inadequate greasing can include: replacement bearings; labor to repair or replace bearings; lost time and its impact on productivity. Indirect, but very real costs of inadequate greasing include: wasted grease, environmental issues, safety or housekeeping issues, and higher labour costs related to inefficient manual greasing practices.

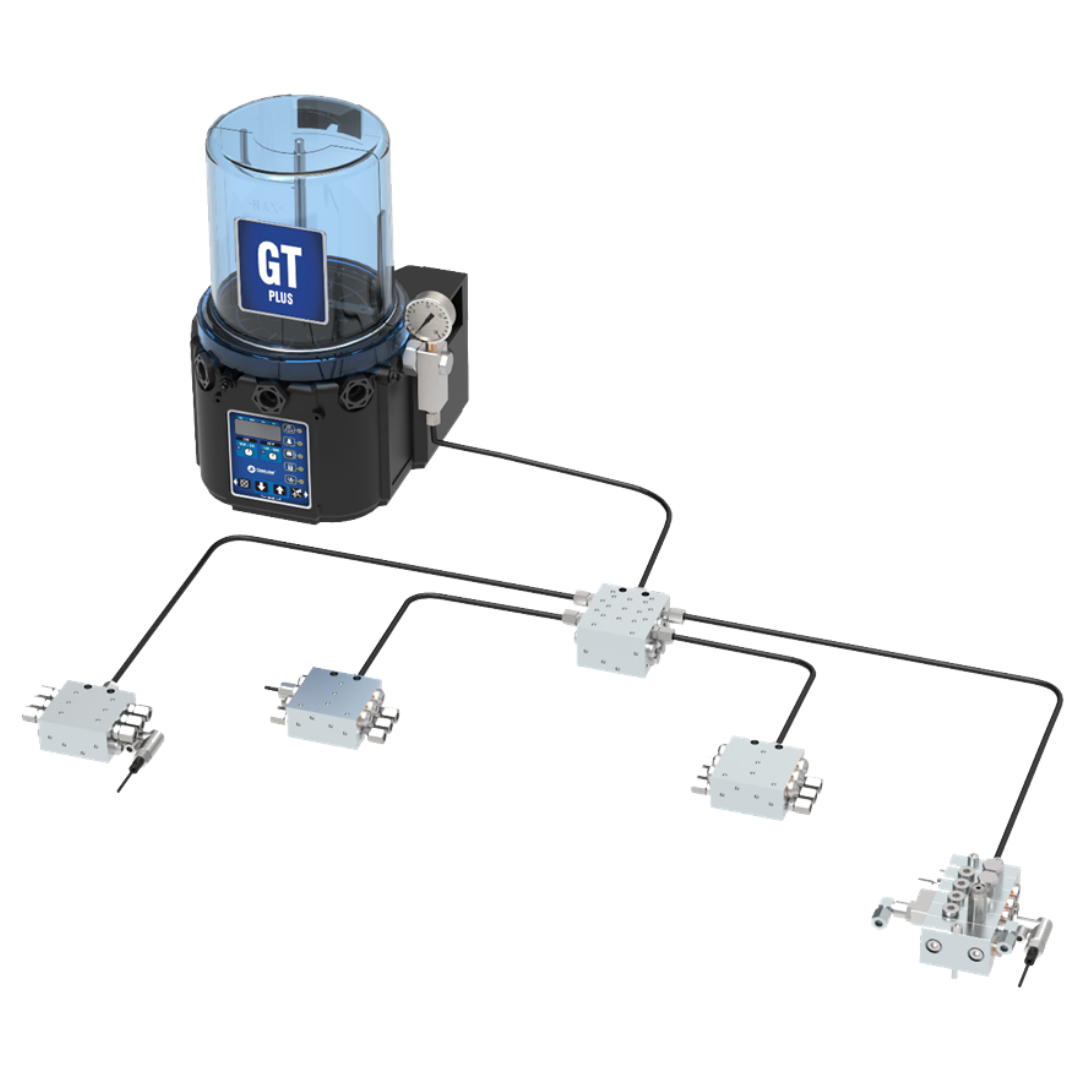

Typical Automatic Greasing System Layout
Allguard installed Automated Greasing System consists of a GT-Plus 12/24 VDC Series 20D pump, positive displacement grease metering valves, fittings, tubing, hose and custom guarding. GT-pump include an integrated adjustable timer for easy installation, trouble-free operation and maximum flexibility. Grease reservoirs range from 4 – 12 kg/l. Our automated greasing systems service steering cylinders, center articulation, oscillating axles, lift cylinders, boom anchors, bucket joints, transmission hanger bearings, suspension cylinder, dump box pivots, drill mast bearings, hammer surfaces, “H” links on excavators, and more. The greasing system is suitable for most off-the-shelf greases currently in your shop. It will handle grease up to an NLGI #2 rating to -25 °C or -13°F.

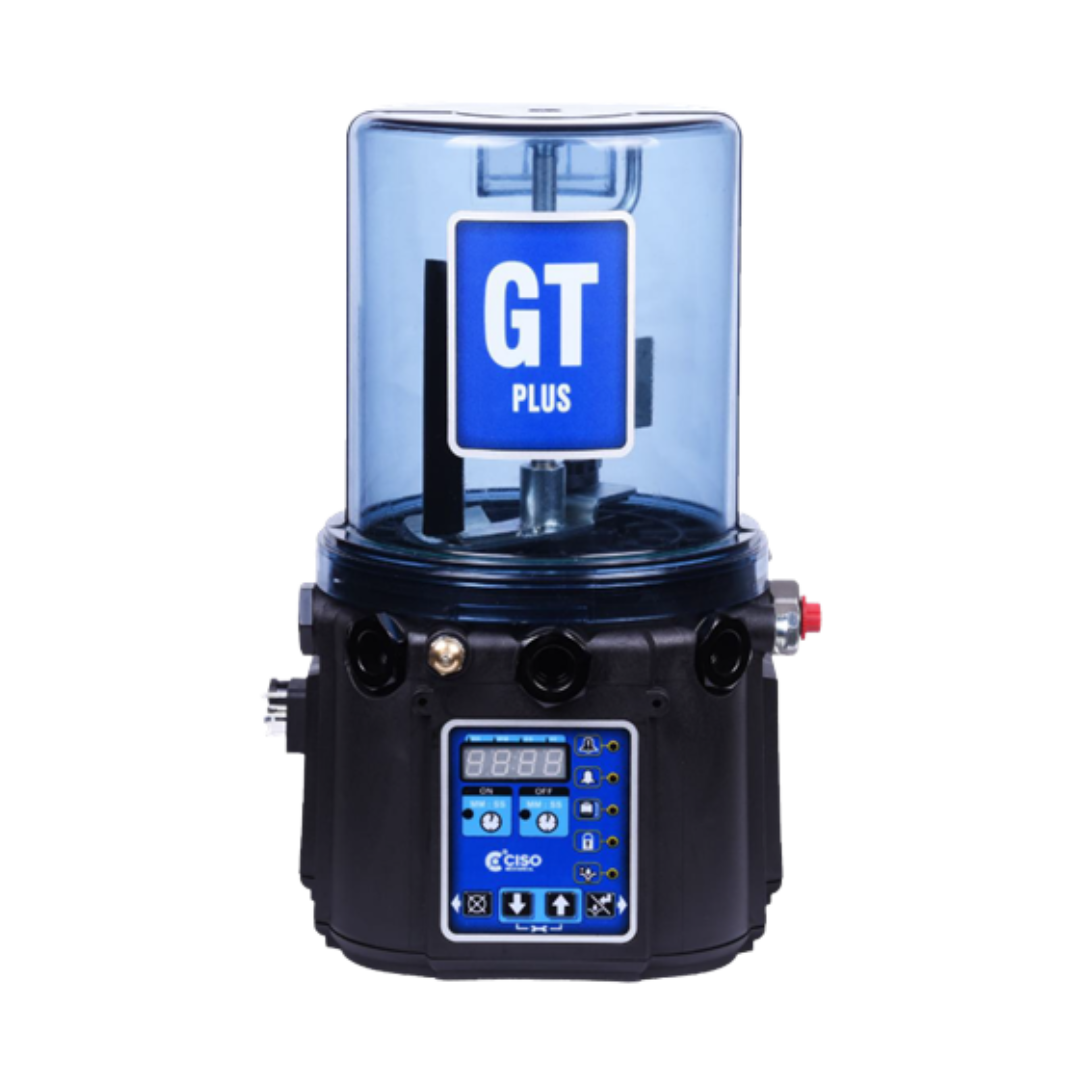

GT-Plus Electric Pump
GT is a piston pump, pre disposed to operate with a maximum of five pumping units, five independent line lubrication at the same time, output can be combined and increase displacement. With special materials, to achieve excellent anti-shock ability Special design of pump make it easy to observe the oil level and prevent UV radiation, prevent oil deterioration.
Features
- Unit of pump outlets : Max 5 Element Pump
- Flow per pump unit : 2ml、3ml、4ml/min
- Operating pressure : Max.35MPa
- Reservoir Capacity : 4L、8L、12L
- Lubricants : Oil or NLGI 000# to NLGI 2#
- Operating temperatures : -50~90℃
GP203 Electric Pump
GP203 is a piston pump, pre disposed to operate with a maximum of three pumping units, three independent line lubrication at the same time. The compact size provides up to 150 lubrication points depending on the length of the line
Features
- Unit of pump outlets : Max 3 Element Pump
- Flow per pump unit : 0.6 – 4.4ml/min
- Operating pressure : Max.35MPa
- Reservoir Capacity : 2L、4L、8L
- Lubricants : Oil or NLGI 000# to NLGI 2#
- Voltages : 2VDC、24VDC、115VAC、230VAC
- Operating temperatures : VDC -40 – 70℃, VAC -25 – 70℃

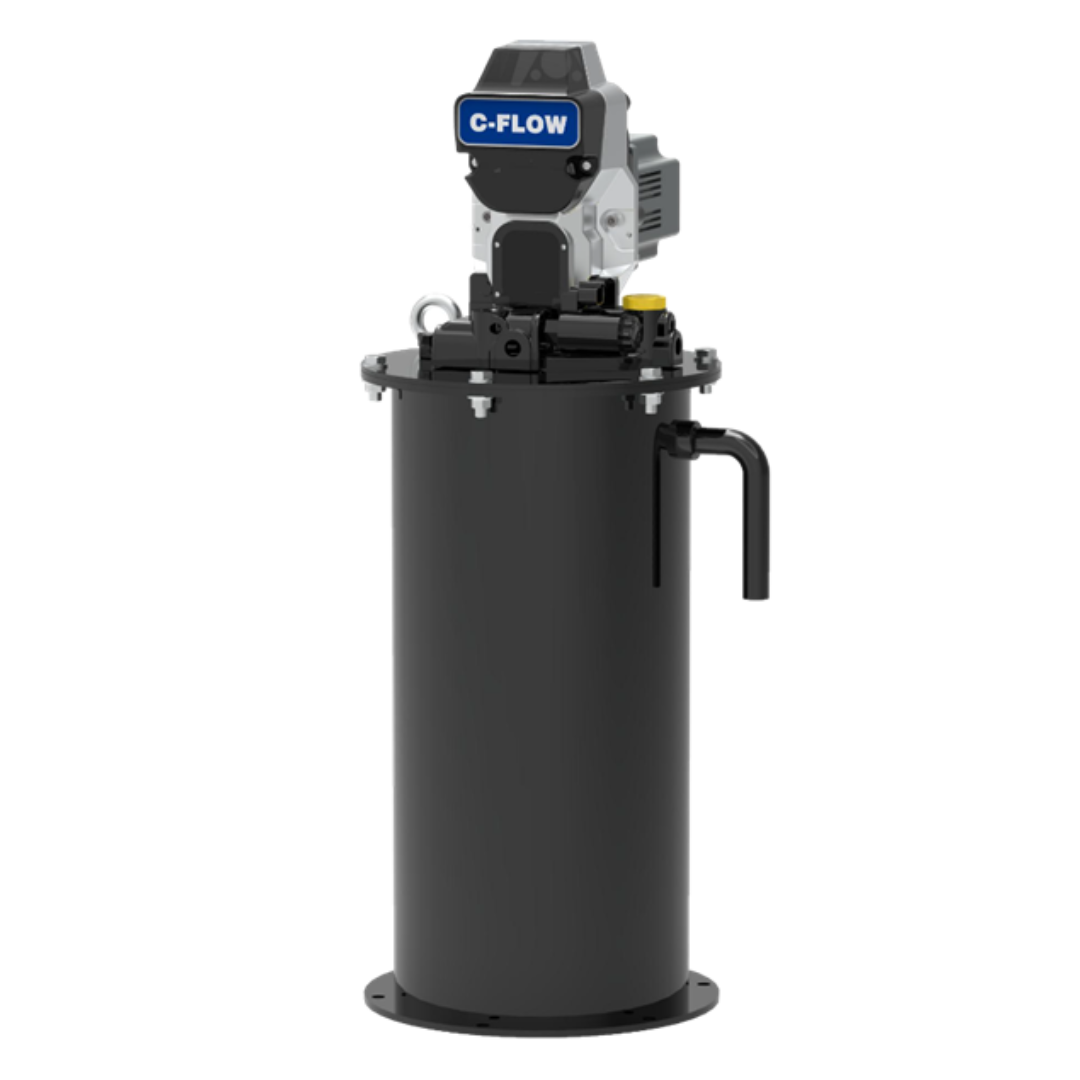

C-FLOW Electric Pump
C- FLOW is a compact high-performance electric pump, driven by a motor’srotary motion to turn with the reciprocating motion of the pump to provide lubricant flow effectively. Motor adopts brushless motor, low noise, low maintenance cost, long service life. A pump body strong, durable, large displacement, the characteristics of small size is easy to install.
Features
- Operating pressure : Max. 241Bar
- Output rate : Max74ml/min
- Reservoir Capacity : 27KG、41KG
- Material : Carbon Steel, Stainless Stell
- Voltages : 24VDC
- Operating temperatures : -40℃ – 65℃
LUBESTAR Hydraulic Pump
High-performance Lubestar hydraulic pumps combine rotary-driven pump motors with reciprocating pump tubes and flexible control features that perform in desert heat and arctic cold. Pump and reservoir combination models are automatically level-sensor and shut-off system ready. Optional overflow prevention system to improve worker safety and minimize environ-mental concerns caused by overfilling
Features
- Operating pressure : Max. 241Bar
- Output rate : Max74ml/min
- Reservoir Capacity : 27KG、41KG
- Material : Carbon Steel, Stainless Stell
- Voltages : 24VDC
- Operating temperatures : -40℃ – 65℃
