Description

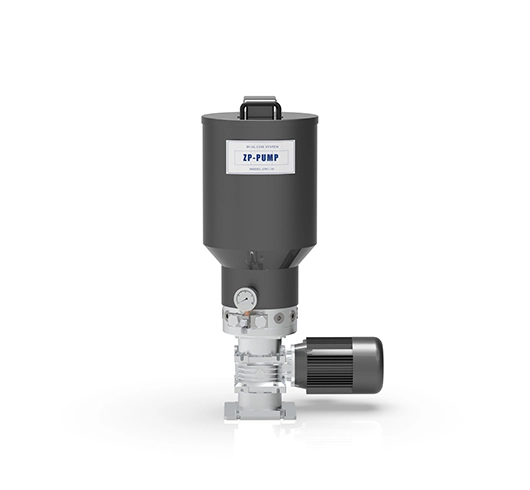

The ZP01/02 high-pressure, high-volume pumps are designed for use as supply pump units in small to midsize dual-line or progressive systems. Depending on the system layout, these electric pumps can deliver lubricant over distances of 100 meters or more, with a maximum pressure of 400 bar (5,800 psi). Available with 15 or 30 L reservoirs, they are compatible with oil and grease up to NLGI 2, with NLGI 3 available upon request. Equipped with one or two elements, the ZP01/02 pumps operate efficiently in temperatures ranging from –20 to +70°C, aided by an integrated stirring device.
Technical Information of ZP01/02 Lubrication Pump
|
Technical data |
|
| Function principle | electrically operated piston pump unit |
| Operating temperature | –20 to +70 °C |
| Operating pressure | Max 40Mpa, 5 800 psi |
| Lubricant | grease: up to NLGI 2, NLGI 3 on request
oil: with a viscosity of min 40 mm2/s at |
| Metering quantity | ZP 01: 2 160 ml/h
ZP 02: 4 320 ml/h |
| Reservoir capacity | 15、30L |
| Electrical connection | 380V |
| Protection class | IP 65 |
| Lubrication systems | dual line lubrication systems |
Technical Drawing of ZP01/02 Lubrication Pump
| Reservoir | H(mm) | B(mm) | D(mm) | T(mm) |
| 15L | 740.1 | 534.7 | 256 | 383 |
| 30L | 887.5 | 534.7 | 318 | 383 |
Characteristics of ZP01/02 Lubrication Pump
- Reliable
- Simple to service
- Three options for high lubricant output
- Ultrasonic low- and high-level control options
- Built-in lubricant filter
