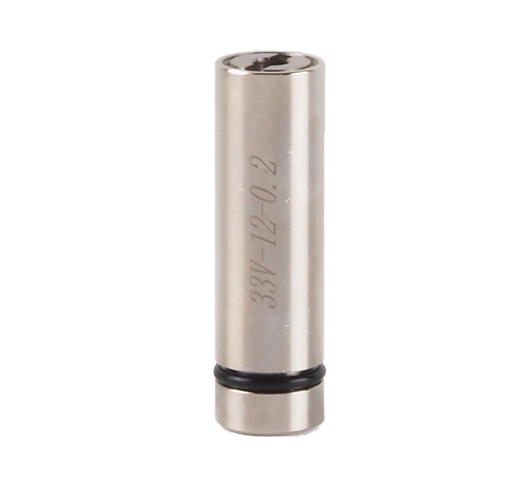

The 33V Metering Valves are designed for efficient performance under demanding conditions. They operate with a minimum action pressure of 1.5MPa and can handle back pressures up to 0.5MPa. These valves feature a standard 4mm outlet and are built to function in temperatures ranging from -40°C to 90°C.
Technical Information of 33V Metering Valves
| Type | Output | Part number |
| Tube fitting | 0.06ml | 33V1206 |
| 0.1ml | 33V1210 | |
| 0.2ml | 33V1220 | |
| Lubrication system | single line lubrication system | |
Technical Drawing of 33V Metering Valves
Ordering information:
| Type | Output | Part number |
| Tube fitting | 0.06ml | 33V1206 |
| 0.1ml | 33V1210 | |
| 0.2ml | 33V1220 |
