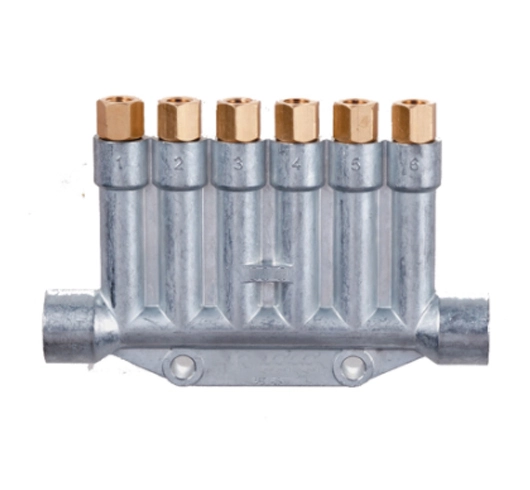

The VMN series relubrication metering devices are specifically developed for use in single-line, centralized lubrication systems for fluid grease. Available with two, four, or six ports, these devices are designed for direct installation on vehicles or construction machines requiring lubrication.
Technical Information of VMN Metering Valves
| Technical characteristics | |
| Outlets | 2, 4, 6 |
| Flow rate | 0.1ml, 0.2ml, 0.4ml |
| Lubricant | fluid grease of NLGI 000, 00 |
| Operating temperature | –25 to +80 °C |
| Operating pressure | 2 to 8 Mpa |
| Material | zinc die-cast, brass, steel, flat washer
(copper), NBR |
| Connection main line | M10*1 |
| Connection outlet | 4mm in O.D. tube |
| Lubrication system | single line lubrication system |
Technical Drawing of VMN Metering Valves
Dimensions (mm)
Characteristics of VMN Metering Valves
- Choose metering device with two, four or six points to match number of lubrication points
- Designed for installation directly on the vehicle/machine requiring lubrication
- Select metering nipples and push-in or screw-in type fittings for feed line or main line connections
- Easy metering adjustment by replacing metering nipples
- Surface for optimized corrosion protection
