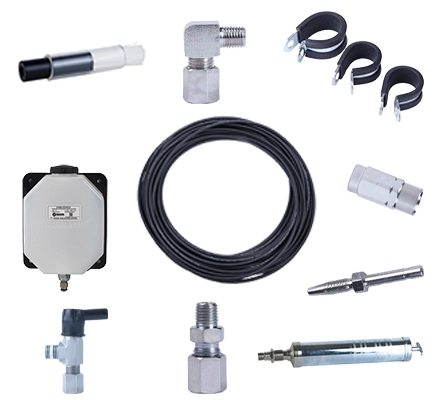

Lubrication Parts

Description

We offer a complete selection of lubrication components for our lubrication system products, ensuring maximum performance and extended service life. Our range includes high-pressure flexible pipes for effective fluid transfer, push-in fittings for reliable connections, and straight fitting assemblies for easy installation. Each component is engineered with precision and durability to ensure the smooth operation of your centralized grease lubrication system. By using our high-quality parts, you can boost machinery efficiency, lower maintenance expenses, and enhance overall productivity.

Specification of Lubrication Parts

Description	Part number	Grease fitting

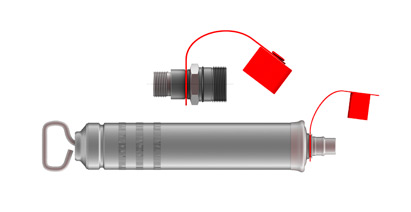

Grease Gun Kits	MG500	Standard Connector
Grease Gun Kits	MG500-C	Grease fitting withcheck valve

Description	Part number	Oil drum
Follower Plate	95660C	16KG

GT PLUS Pumping Element

Part number	OD	Rated flow
80536	6mm	K6; 4ml/min
80537	7mm	K7; 5ml/min

GM Pumping Element

Part number	OD	Rated flow
88535	5mm	P5; 3.3ml/min
88536	6mm	P6; 4ml/min

Safety Valve

Part number	Pressure	Male thread
5FI05	207bar/3000psi	M10*1

Part number	Description	Male thread
5FI07	275bar/4000psi	NPT1/8

Part number	OD	Male thread	Pressure
5FJ01	φ6	M14*1.5	345bar/5000psi

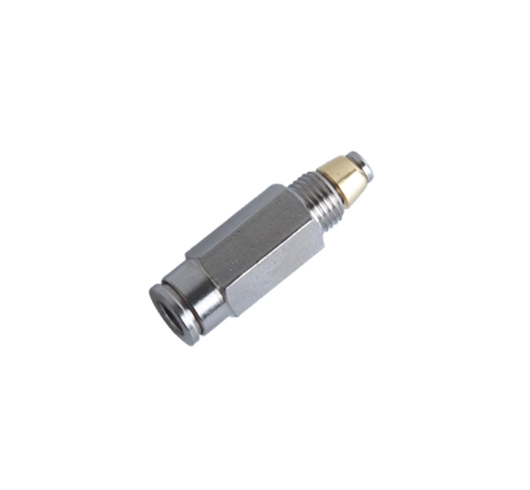

Straight Fitting Assembly

Part number	OD	Thread	Material
5DM0602	Ø6	R1/8	Zinc plated
5DM0610	Ø6	M10*1	Zinc plated
5DM0608	Ø6	M8*1	Zinc plated
5DM0606	Ø6	M6*1	Zinc plated
5DM0402	Ø4	R1/8	Zinc plated
5DM0410	Ø4	M10*1	Zinc plated
5DM0408	Ø4	M8*1	Zinc plated
5DM0406	Ø4	M6*1	Zinc plated

Part number	OD	Thread	Material
5PM0602	Ø6	NPT1/8	Nickel-plated steel

Hose Coupling Straight

Part number	A	B	C	D	Material
ZZ06	Ø6	60	30	M7*1	Zinc plated
ZZ06-1(Short)	Ø6	54.5	21.5	M7*1
ZZ0610	Ø6	63	30	M10*1
ZZ08	Ø8	63	30	M10*1

Threaded Sleeve

Part number	OD	Thread	Material
WO06	Ø6	M7*1	Zinc plated
WO08	Ø8	M10*1

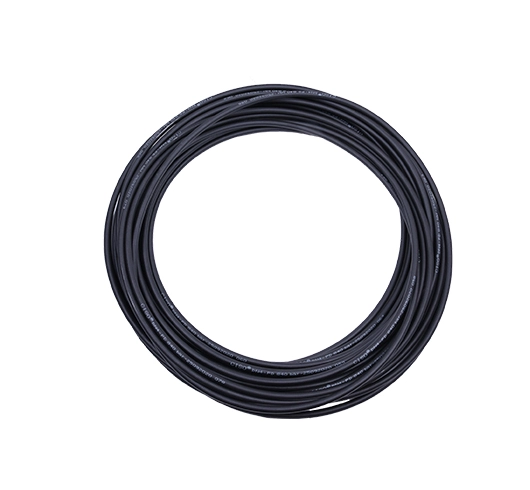

High-Pressure Flexible Pipe

Part number	Outer diameter	Inside diameter
T-HP03	Ø6	Ø3
T-HP04	Ø8.6	Ø4
T-HP06	Ø11	Ø6.3
