Description

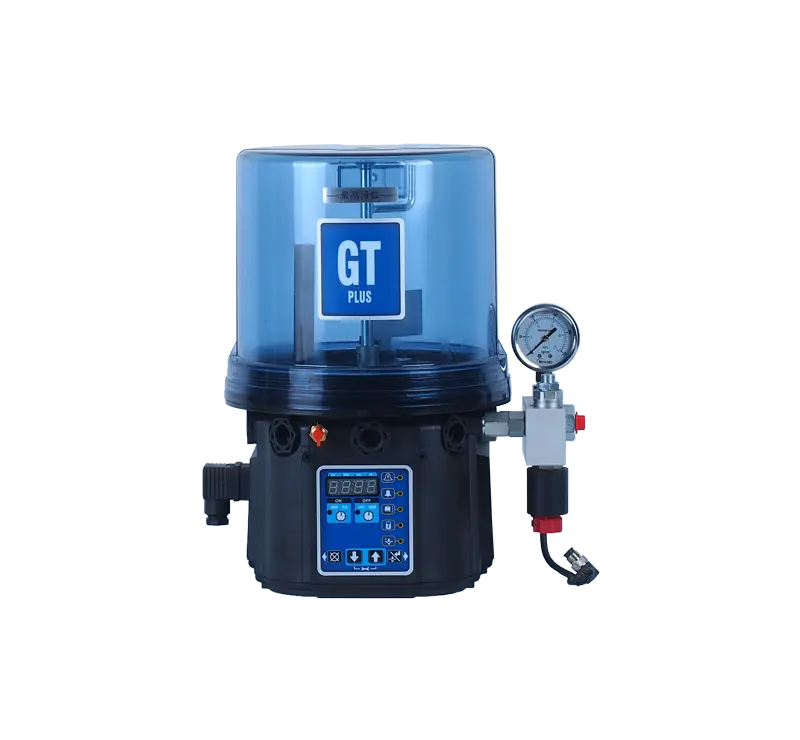

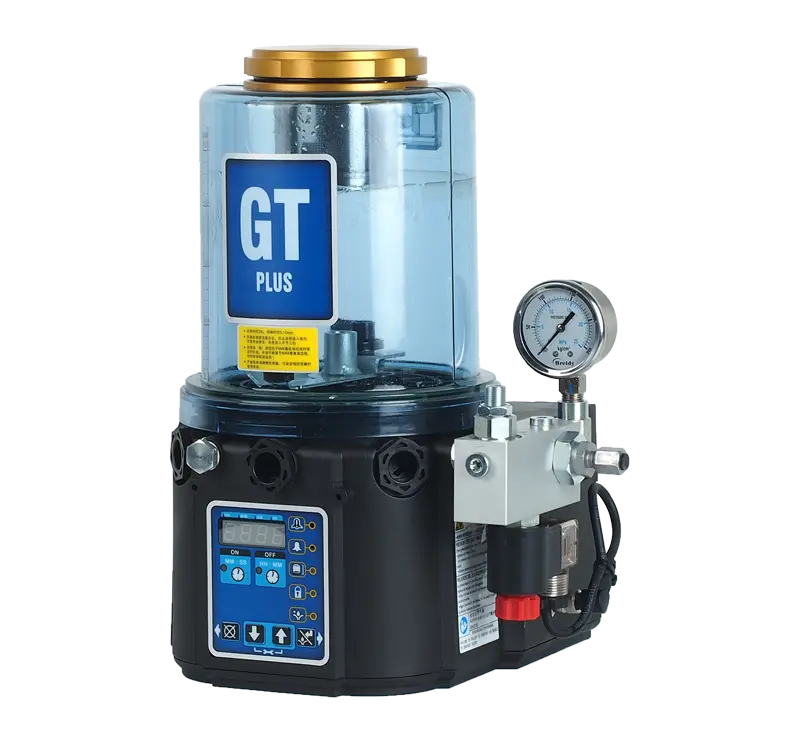

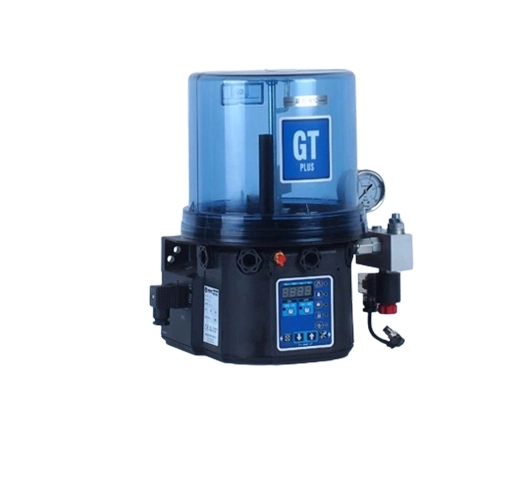

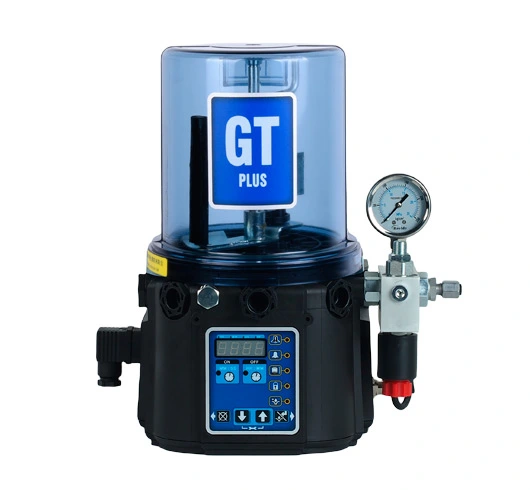

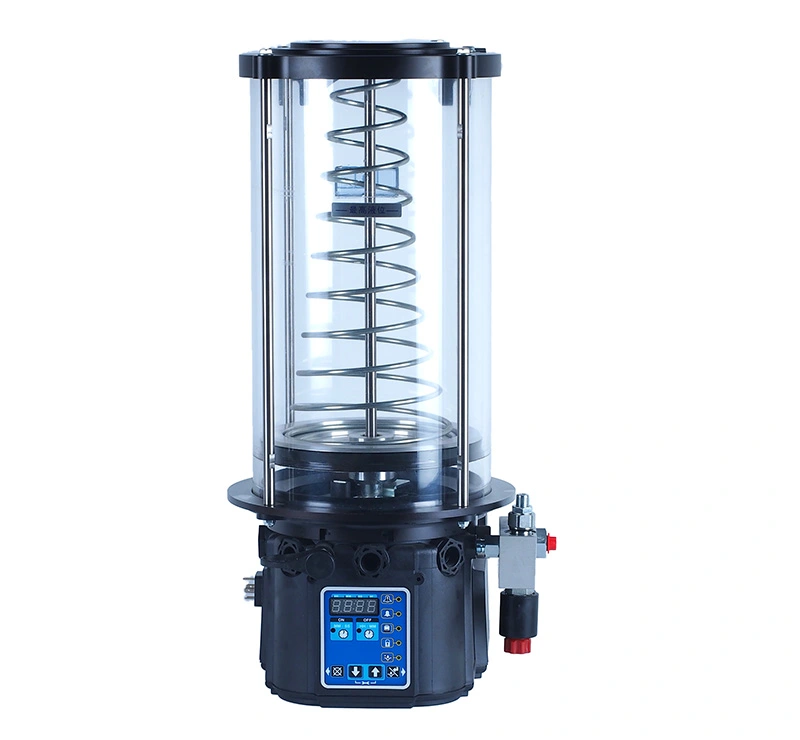

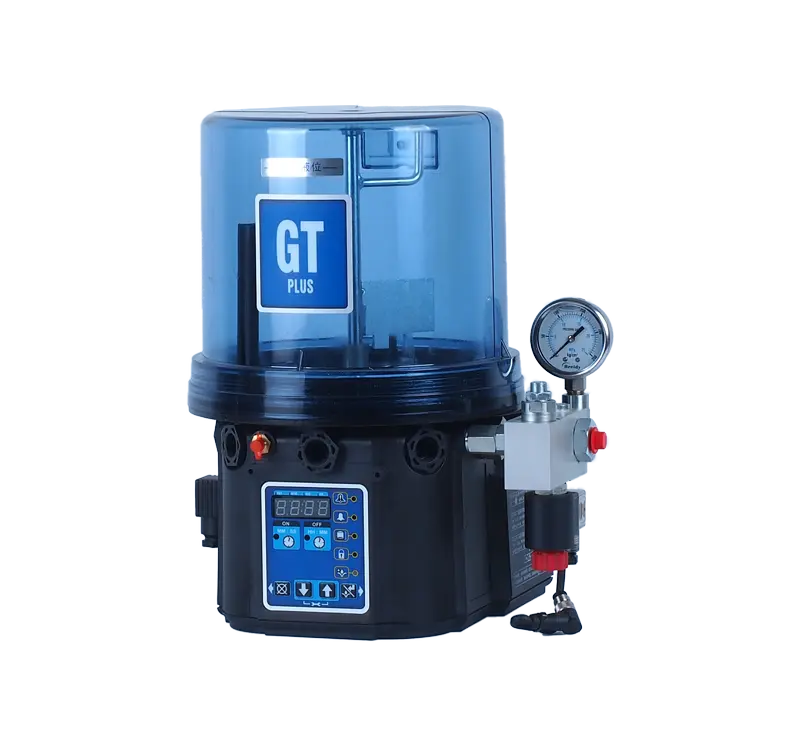

The GTS Pump is a piston pump designed to operate with a maximum of one pumping unit, making it ideal for single-line systems.
It is available in two models:
1. **Standard Model**: This version is controlled by an external PLC and does not include an internal control unit, making it the most economical solution for system lubrication.
2. **Automatic Model**: This version features an integrated control system, allowing for local runtime setup. It is equipped with local operation and alarm lights, a buzzer for alarms, and provides low-level and pulse alarms. It can also be integrated with distributor unit monitors, creating a seamless operating system.
Technical Information of GTS Single Line Lubrication Pump
| TECHNICAL CHARACTERISTICS | |
| Voltages | 12VDC, 24VDC, 220V |
| Unit of pump outlets | 1 |
| Outlet thread | G1/4 |
| output | max. 15 ml/min(one pump element) |
| Working pressure | adjustable from ±70 to 150bar |
| Reservoir Capacity | 2L/4L/6L/8L |
| Lubricants | OIL, 000, 00, 0, 1 |
| Operating temperatures | -40-90℃ |
| Lubrication system | single line lubrication system |
Technical Drawing of GTS Single Line Lubrication Pump
| Reservoirs | A | B | C | D | E | F | G | H |
| 2L | 338 | 255 | 229.5 | 248 | 95.5 | 83.5 | 162.5 | 180 |
| 4L | 378 | 255 | 229.5 | 248 | 95.5 | 83.5 | 162.5 | 180 |
| Reservoirs | A | B | C | D | E | F |
| 6L | 358 | 256 | 256.5 | 95.5 | 162.5 | 255 |
Characteristics of GTS Single Line Lubrication Pump
- oil and grease
- Reservoirs: 2L/4L/6L/8L
- Voltages: 12VDC/24VDC/220V
- Multiple grease filling ways
- Powerful centralized control system
- CE Certification
- Design patent
- IP65
